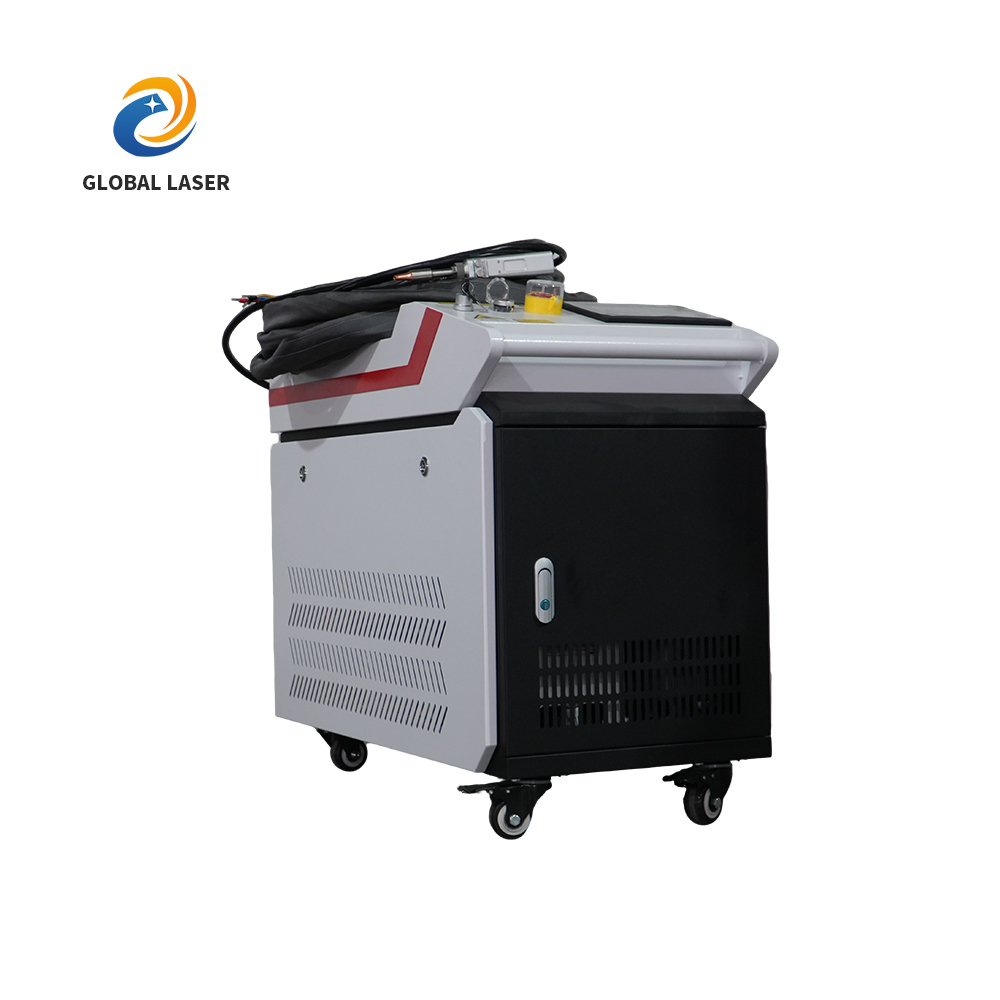

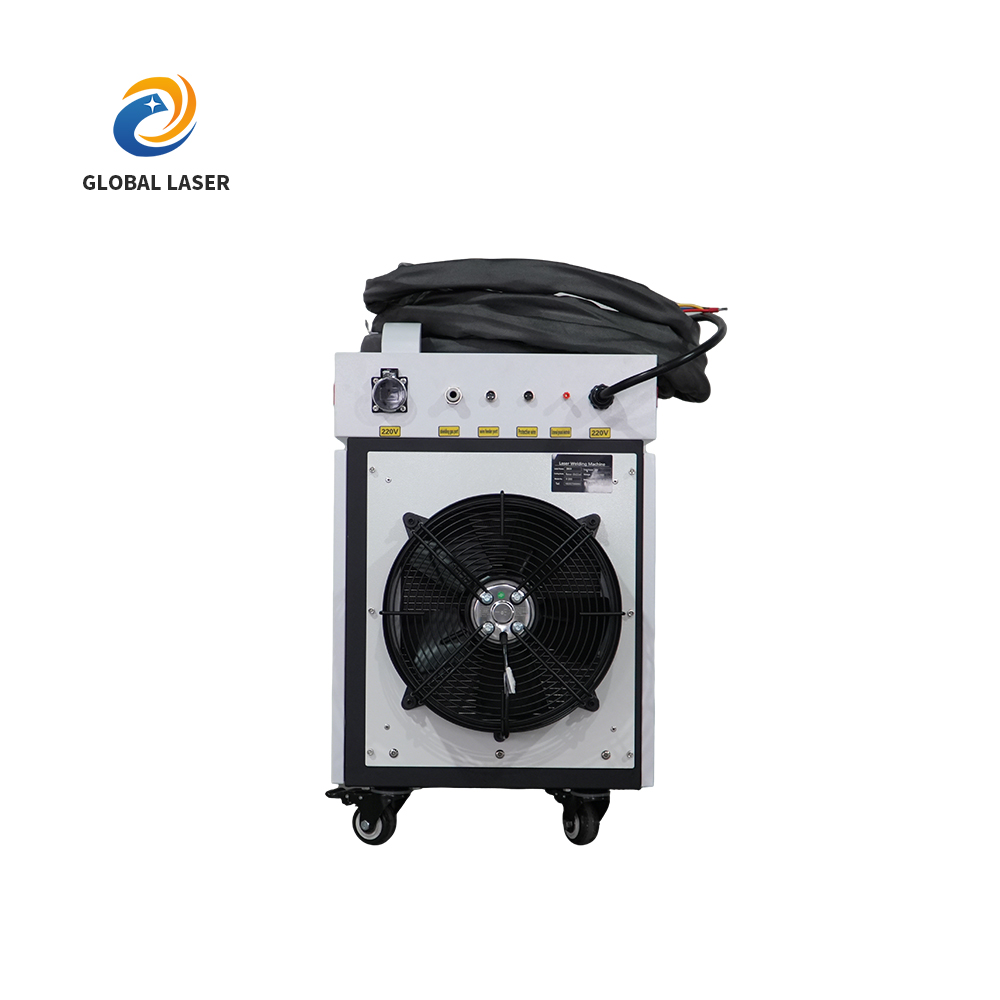

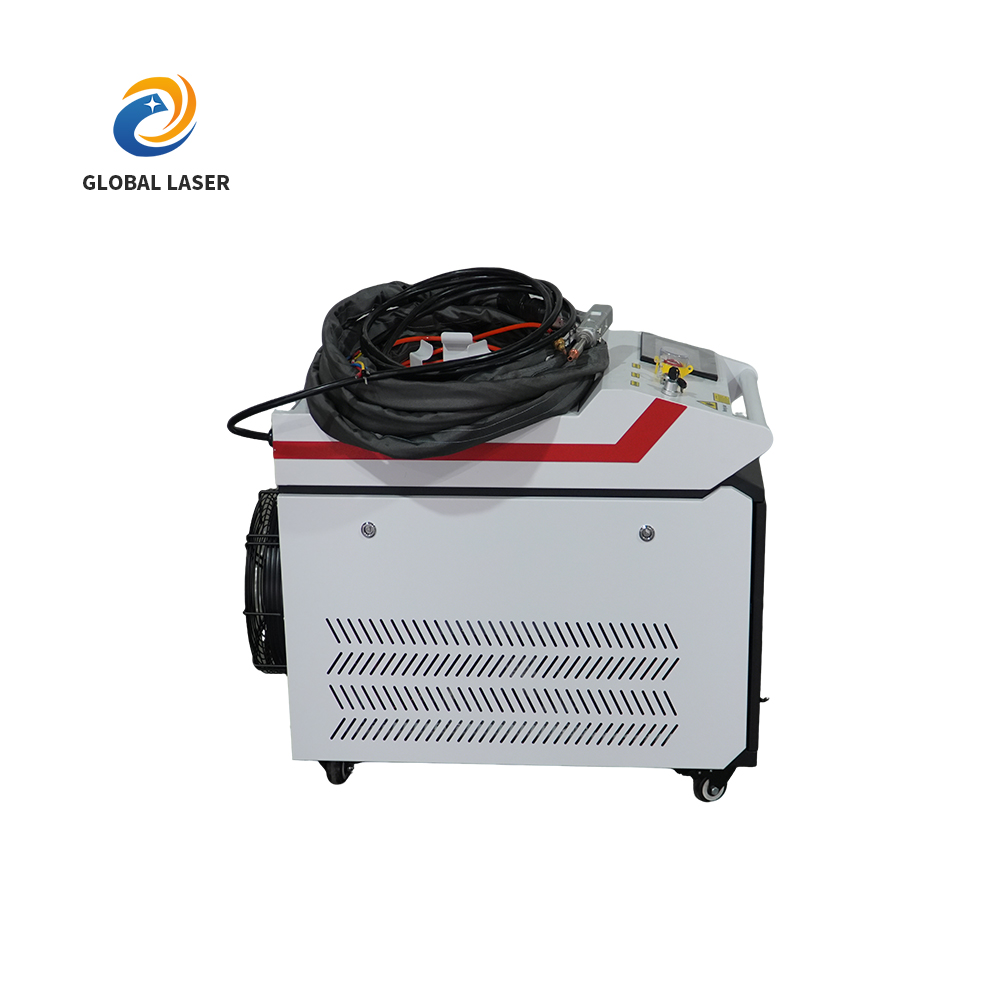

Three-In-One Laser Welding Machine

Three-In-One Laser Welding Machine

Brand - GLOBAL LASER
Maker - China GLOBAL LASER Co., Ltd.
Table Size -
50*50*55
Rating -
4.69
Price -
Note -
$10000-$15000
for Basic & Pro Editions
300 Units in Stock Available for Sale Every Month
Meeting CE Standards in Terms of Quality & Safety
1-Year Limited Warranty (Extended Coverage for Major Parts Available)
Free Lifetime Technical Support for End-Users & Dealers
Global Logistics and International Shipping To Anywhere
Get a Quote
Product inquiry
Incoming Material Inspection + Process QC Records Available
Power Calibration Report Available Upon Request
Burn-In Test Completed Before Delivery

Laser Welding Machine Technical Parameters

Specification QYWL-FC1500 QYWL-FC2000 QYWL-FC3000
Laser power 1500W 2000W 3000W
Laser type Continuous (CW) Continuous (CW) Continuous (CW)
Laser source brand MAX MAX MAX
Optical Fiber cable length 10m (15m optional) 10m (15m optional) 20m (30m optional)
Controller SUP-23T SUP-23T SUP-23T
Laser head SUP23T SUP23T SUP23T
Welding head type Single pendulum welding head Single pendulum welding head Single pendulum welding head
Wire feeder SUP-AMF-A Single Automatic Wire Feeder SUP-AMF-A Single Automatic Wire Feeder SUP-AMF-D Double Automatic Wire Feeder
Cooling type Water cooled Water cooled Water cooled
Water chiller S&A CWFL-1500 S&A CWFL-2000 S&A CWFL-3000
Power consumption 7.7kw 10kw 12.6kw
Electric current 35A 45A 25A
Voltage 220V, single phase 220V, single phase 380V, 3-phase
Power adjustment range 10-100% 10-100% 10-100%
Central wavelength 1070~1090nm 1070~1090nm 1070~1090nm
Temperature of water 22℃-26℃ 22℃-26℃ 22℃-26℃
Cooling water Distilled water, Plasma water Distilled water, Plasma water Distilled water, Plasma water
Auxiliary gas Nitrogen/Argon for welding, Compressed air for cleaning Nitrogen/Argon for welding, Compressed air for cleaning Nitrogen/Argon for welding, Compressed air for cleaning
Cleaning head protective lens D18*T2 D18*T2 D18*T2
Cleaning head focusing lens D20*4.5 F150 / D20*4.5 F800 D20*4.5 F150 / D20*4.5 F800 D20*4.5 F150 / D20*4.5 F800
Clean head collimator lens D16*5 F60 D16*5 F60 D16*5 F60
Cleaning head weight 0.8kgs 0.8kgs 0.8kgs
Machine size 917*490*850mm 1110*490*850mm 1240*510*1140mm
Package size 109*60*143cm=0.94cbm 122*60*143cm=0.11cbm 136*101*151cm=2.08CBM
Net weight of machine 105kgs 130kgs 190kgs
Package weight 170kgs 200kgs 285kgs

Customer Testimonials

High recognition from global customers testifies to SDGlobal Laser's excellent quality and service
"We have been working with SDGlobal Laser for more than three years. Their laser marking machines are not only highly accurate and fast, but their after-sales service is also excellent. Every time we encounter a problem, the technical team responds quickly, truly providing global service."
Electronic Component Manufacturers
"SDGlobal's laser engraving equipment is very stable and has a fine cutting effect. We use it to process acrylic and leather materials, and our customers have given us very good feedback. The customized service they provide is also very professional and fully meets our business needs."
Advertising Craft Business Owner
"We purchased a CO₂ laser marking machine for hardware product identification. It has been running almost fault-free so far. The marking is clear and durable. It is really worth the money."
Industrial Parts Supplier

Our Factory

Welcome To Visit Us
SDGlobal Laser has a modern production base that combines advanced manufacturing equipment, lean management processes and strict quality control systems to provide stable and reliable laser equipment products to global customers.
