Battery Handheld Marking Machine

battery handheld marking machine
SDGLOBALLASER

Battery Handheld Marking Machine

,
Brand: SDGLOBALLASER
Model: Battery Handheld Marking Machine
Product Type: Battery-Powered Handheld Fiber Laser Marking Machine
Applicable Materials: Metals including SS, steel, aluminum, brass, copper and more; plastics and coated materials are compatible based on their formulation and machine settings.
Working Area / Marking Area: Fixed at 100×100 mm.
Key Spec: Equipped with a 1064nm fiber laser; available in 20W, 30W, or 50W power options; features a built-in detachable battery for portable use.
Speed / Productivity: Offers a maximum marking speed of ≤ 7000 mm/s for efficient processing.
Accuracy / Repeatability: Delivers high-precision marking results; repeatability is influenced by operator technique, part positioning, and the use of fixtures.
Control System: Integrated touchscreen control system for intuitive operation; red light preview function enables precise positioning; supports PC-free operation for on-the-go use.
Power Supply: Optional 110V or 220V input, compatible with 50/60Hz power grids; used for battery charging or direct plug-in operation depending on configuration.
Lifetime after-sales support for all equipment
Online video and remote guidance
Prompt supply of original spare parts
Get a Quote
Official inquiry 02

Battery Handheld Marking Machine Product Overview

SDGLOBALLASER Battery Handheld Marking Machine is a portable, high-precision battery-powered fiber laser marking machine designed for mobile and on-site marking. With a built-in detachable battery, it operates without being restricted by power cords—ideal for marking large, bulky, or difficult-to-move workpieces directly at the job site.

This Battery Handheld Marking Machine features a touchscreen control system that does not require an external computer, making operation faster and more convenient in complex environments. Powered by a 1064nm fiber laser with optional 20W/30W/50W, it delivers stable output, fine marking quality, and fast performance for common traceability tasks such as serial numbers, logos, barcodes, QR codes, and part IDs on metals and selected non-metal materials.

Battery Handheld Marking Machine Product Description:

The Battery Handheld Marking Machine is built for users who need true mobility and fast deployment. Its detachable battery design supports flexible operation for field work, workshop movement, and situations where power access is limited. Combined with a touchscreen controller, the system works independently—no external PC needed—reducing setup time and improving efficiency.

Equipped with a high-performance fiber laser (1064nm), this battery handheld laser marking machine produces clear, permanent marks with a small heat-affected zone. It is especially suitable for on-site marking of heavy industrial parts, large metal structures, and any workpiece that is hard to move to a fixed marking station.

Battery Handheld Marking Machine Product Details

Battery Handheld Marking Machine Technical parameters

Parameter
Specification
Product Name
Battery Handheld Marking Machine
Laser Type
Handheld Fiber Laser Marking Machine
Laser Wavelength
1064 nm
Laser Power
20W / 30W / 50W (optional)
Marking Speed
≤ 7000 mm/s
Marking Range
100×100 mm
Positioning Method
Red light preview
Cooling Method
Air cooling
Power Supply
110V / 220V (optional)
Battery
Built-in detachable battery (mobile operation)
Control System
Touchscreen, no external computer required

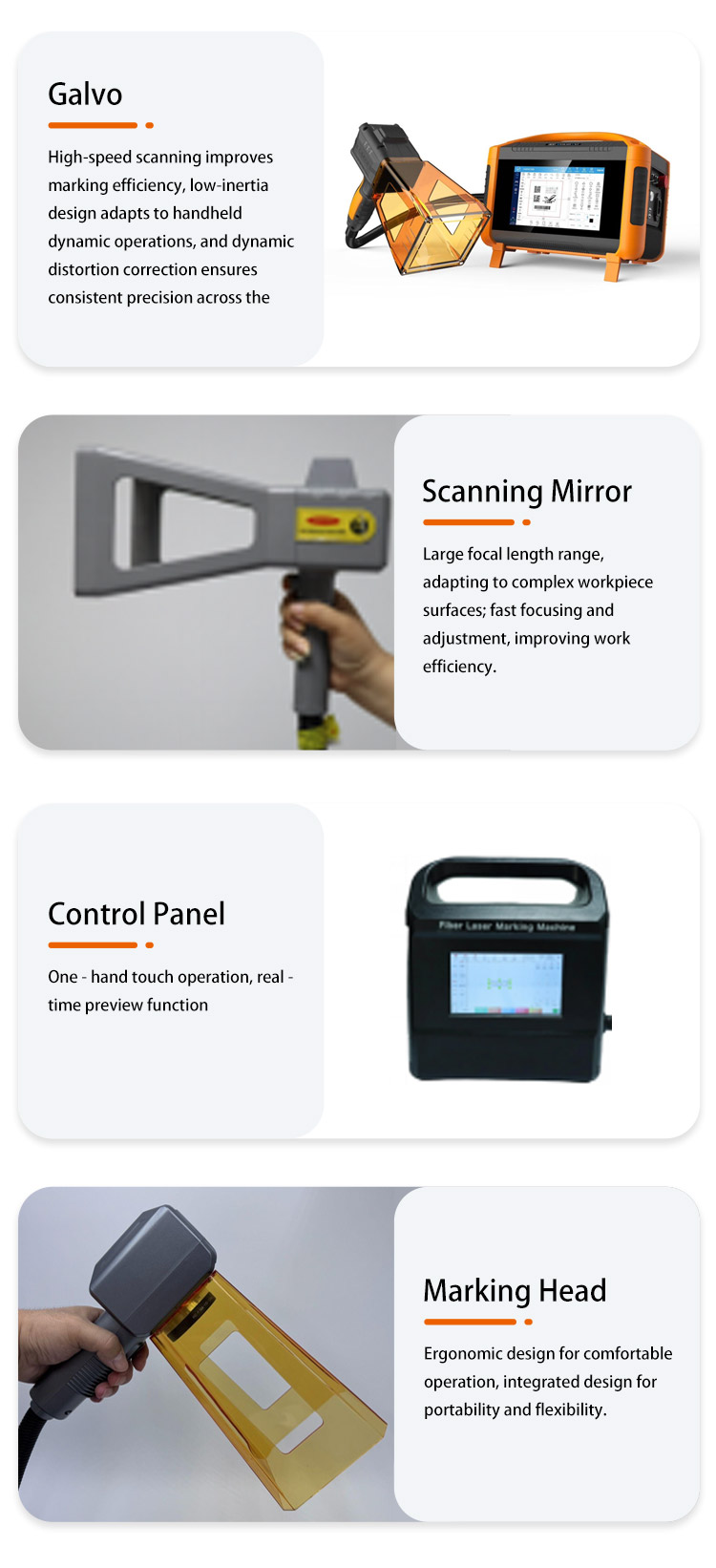

Battery Handheld Marking Machine Product Core

Built-in Detachable Battery: True cordless marking for mobile jobs; suitable for export scenarios and field use

Touchscreen Control (PC-Free): No external computer required; faster setup and easier operation
Portable for On-Site Marking: Ideal for marking heavy, large, or immovable workpieces
High Precision Fiber Laser (1064nm): Fine engraving/marking/etching with stable output
Fast Marking Speed: Up to ≤7000 mm/s for efficient workflows
Red Light Preview Positioning: Quick alignment and accurate placement
Air Cooling: Stable operation with simpler maintenance

Battery Handheld Marking Machine Application of the Product

Large Industrial Components: Heavy machinery parts, large metal structures, and oversized workpieces
On-Site Marking: Mark directly at the work location to avoid moving the part
Metal & Plastic Marking: Various metals and selected plastics/coated materials (material dependent)
Customized Marking Jobs: Custom products, irregular shapes, and unique items not suitable for fixed machines

Battery Handheld Marking Machine Applicable Materials

Metals: Stainless steel, carbon steel, aluminum, brass, copper, etc.

Plastics/Coatings: Markability depends on formulation/additives/color; sample testing recommended

Packaging & Shipping

Option A — Carton Packing

Net Weight: 6 kg

Carton Size (L×W×H): 550 × 220 × 330 mm

Gross Weight: 7 kg

Option B — Wooden Case Packing

Wooden Case Size (L×W×H): 610 × 285 × 410 mm

Gross Weight: 12 kg

Packaging Type Recommendation

Carton Packing: suitable for fast delivery and cost-sensitive shipments.

Wooden Case Packing: recommended for long-distance transport and sea freight for stronger protection.

Shipping Options

Express: DHL / UPS / FedEx

Air Freight

Sea Freight (wooden case recommended)

Handling & Protection

Shockproof cushioning and internal fixing

“Fragile / Keep Dry / This Side Up” labels for safer transportation

SDGLOBALLASER Services

Provide 24/7 customer support, including technical consultation, product training, and after-sales service. The professional after-sales service team ensures the smooth progress of equipment installation, commissioning and maintenance. The original parts are supplied in a timely manner to ensure the long-term stable operation of the equipment. The products have passed CE, RoHS, ISO and other international certifications, and meet the health, safety and environmental protection standards of the European and American markets. The global sales network covers more than 160 countries and the annual sales volume reaches 15,000 units. Warranty: 36 months Technical Support: Provide remote technical support and on-site service if necessary Operation manual: Users can download it online or provide detailed user manuals and installation guides with the product
